All the travel and refinements, plus MX wheels.
A bigger wheel up front, geometry updates, Glovebox storage, and suspension improvements add up to an even more fine-tuned package.
SEND IT ANYWHERE
Load up the van, hit the road, climb a mountain, hammer it back down, huck the road gap, throw the bike back in the van, drive to the bike park and do laps on laps. Hell, you could even rock up to the start line on it. The Nomad's forte is being ready and willing to go wherever, whenever. The only thing it needs is a rider willing to press send.
BUILT TO TAKE A BEATING
Ridden hard and put away wet. If you're out riding as much as you'd like to be or you're throwing the bike in the back of the van before relocating to the next riding spot then it's nice to know that all Santa Cruz bikes are built to last. Lifetime warranty and rider support.
- Mixed wheel: 29-inch wheel up front provides traction and stability. The 27.5" rear wheel allows for quick back wheel steering and lifting.
- The Glovebox keeps your essentials within reach. Also comes with a Tool Wallet and Tube Purse for keeping things organized.
- 170mm travel front and rear, a slack head angle and rock solid chassis makes this ideal for finding the outer limits of your own riding.
- Chainstay length and seat tube angle is matched to the frame size so every rider, no matter their height, gets the same balanced geometry.
- Max tire width: 29 x 2.6 F / 27.5 x 2.6 R
- Boost 148mm spacing
- Post mount brakes w/ 180mm rotors
- ISCG05 chain guide mounts
- Threaded BB
- Santa Cruz UDH - It's better
- IS headset
|Size||Small (Low/Hi)||Medium (Low/Hi)||Large (Low/Hi)||X-Large (Low/Hi)||XX-Large (Low/Hi)|
|Reach (mm)||427.3 / 430||452.3 / 455||472.4 / 475||492.4 / 495||517.4 / 520|
|Stack (mm)||618 / 616||627 / 625||640 / 638||658 / 656||672 / 667|
|Headtube Angle||63.5° / 63.8°||63.5° / 63.8°||63.5° / 63.8°||63.5° / 63.8°||63.5° / 63.8°|
|Headtube Length (mm)||90||100||115||135||150|
|Seat Tube Angle||77° / 77.2°||77.2° / 77.4°||77.6° / 77.9°||77.5° / 77.8°||77.5° / 77.7°|
|Seat Tube Length (mm)||380||405||430||460||500|
|Rear Center (mm)||439.8 / 439||440.8 / 440||443.8 / 443||446.9 / 446||450.9 / 450|
|Front Center (mm)||770||799||826||855||886|
|Bb Height (mm)||343 / 346||344 / 346||345 / 346||346 / 346||347 / 346|
|Bb Drop F/r (mm)||30/11 / 27/8||30/11 / 27/8||30/11 / 27/8||30/11 / 27/8||30/11 / 27/8|
|Wheelbase (mm)||1209||1240 / 1239||1270 / 1269||1302 / 1301||1337 / 1336|
|Toptube Length (mm)||577 / 570||594||613 / 612||638 / 637||667 / 666|
|Standover (mm)||705 / 709||713 / 716||719 / 723||717 / 722||720 / 725|

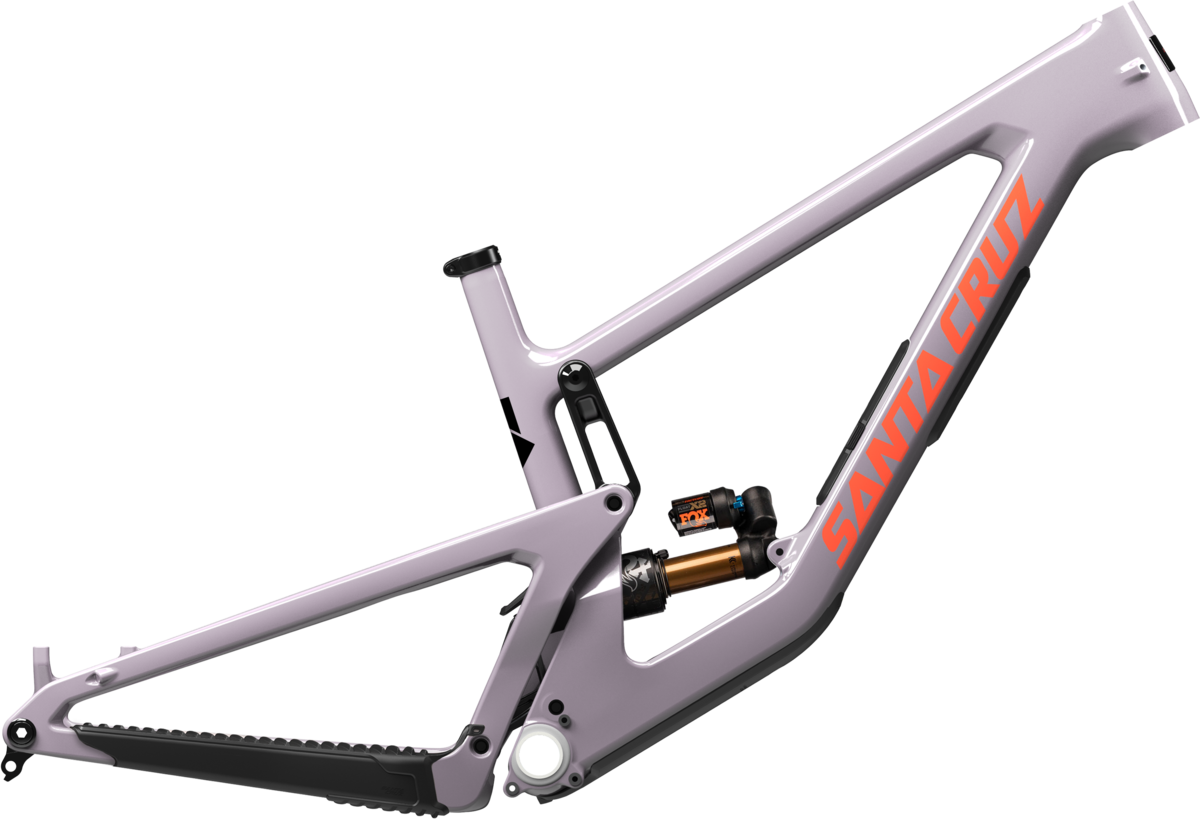

|Frame||Carbon CC MX 170mm Travel VPPTM|
|Rear Shock||FOX Float X2 Factory, 230x65|
* Subject to change without notice.
