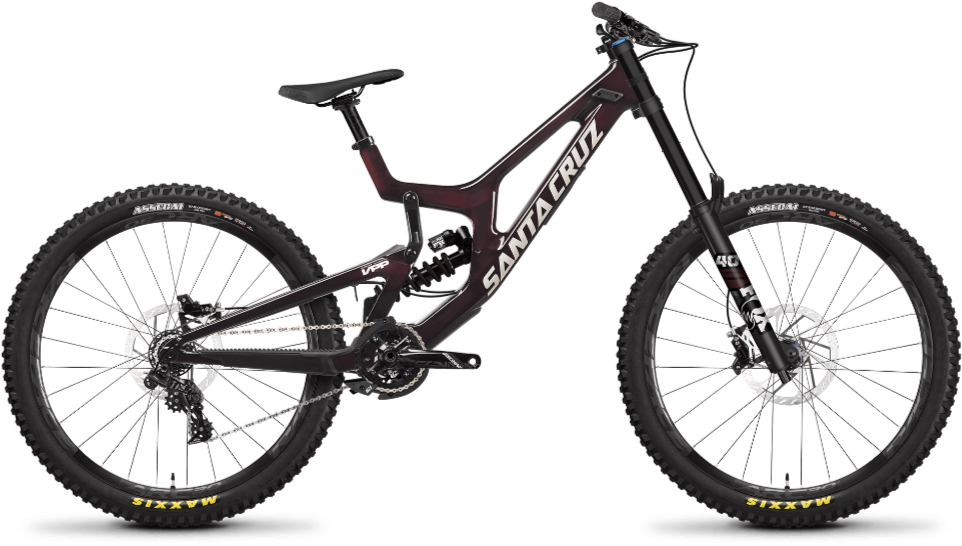

Santa Cruz V10 CC DH S 27.5
Details
Puzzling Ain't Easy
The V10 is designed to be exactly the right bike for anyone who steps up to the start line with eyes on a podium. The racer who chooses a V10 is the recipient of every bit of work and puzzling that's gone into the Syndicate's race bikes.
The continuous fine-tuning that the V10 has undergone with the Syndicate for World Cup season after season has guaranteed regular, high-level feedback. The result is perhaps the most refined suspension performance available outside of a World Cup pit. 215mm of VPP travel is exquisitely refined, and the ease of tuning and serviceability of the VPP system makes it a hit in the pits with mechanics and privateers.
Wheel size has been the latest puzzle to ponder. Greg Minnaar, being a tall rider looking for pure speed on the clock, focuses his choice on 29-inch wheels. Luca Shaw chose what feels fun, because, to him, if he's having fun he's going fast, so he's on a mixed setup.
Bottom line: your V10 is optimized for who you are.
The most successful bike in downhill history shows no signs of slowing down.
| S | M | L | |
|---|---|---|---|
| A. Reach | 412mm | 437mm | 462mm |
| B. Stack | 603mm | 612mm | 616mm |
| C. Standover | 712mm | 712mm | 712mm |
| E. Head Tube Angle | 63.7° | 63.7° | 63.7° |
| F. Head Tube Length | 100mm | 110mm | 115mm |
| H. Seat Tube Length | 435mm | 445mm | 455mm |
| I. Bottom Bracket Height | 356mm | 356mm | 356mm |
| J. Bottom Bracket Drop | -2mm | -2mm | -2mm |
| M. Wheelbase | 1199mm | 1233mm | 1265mm |
| N. Front to Center | 769mm | 798mm | 825mm |
| O. Chainstay Length | 430mm | 435mm | 440mm |
| S | M | L | |
|---|---|---|---|
| A. Reach | 410mm | 435mm | 460mm |
| B. Stack | 602mm | 610mm | 615mm |
| C. Standover | 707mm | 707mm | 707mm |
| E. Head Tube Angle | 63.3° | 63.3° | 63.3° |
| F. Head Tube Length | 100mm | 110mm | 115mm |
| H. Seat Tube Length | 435mm | 445mm | 455mm |
| I. Bottom Bracket Height | 351mm | 351mm | 351mm |
| J. Bottom Bracket Drop | 3mm | 3mm | 3mm |
| M. Wheelbase | 1200mm | 1234mm | 1266mm |
| N. Front to Center | 769mm | 798mm | 825mm |
| O. Chainstay Length | 430mm | 435mm | 440mm |
| Frame Size | Rider Height |
|---|---|
| Small | 5'0" - 5'6" |
| Medium | 5'6" - 5'10" |
| Large | 5'9" - 6'1" |
| X-Large | 6'1" - 6'5" |
Specs
| Frame | Carbon CC |
|---|---|
| Fork | Fox 40 Performance, 203mm, 27.5" |
| Headset | Cane Creek 40 ZS49/EC49 Headset |
| Rear Shock | Fox DHX2 Performance Elite Coil |
| Rims/Wheels | RaceFace ARC HD 30 27.5" Rims |
| Hubs |
Front: i9 1/1, 20x110 Boost, 32h Rear: i9 1/1, 12x157, HG, 32h |
| Tires | Maxxis Assegai 27.5"x2.5", 3C, MaxxGRIP |
| Crankset | SRAM Descendant DH, 165mm, 36t |
| Bottom Bracket | SRAM DUB 83mm |
| Chain | SRAM PC1110, 11spd |
| Rear Derailleur | SRAM GX DH, 7spd |
| Cassette/Rear Cogs | SRAM PG720 DH, 11-25t |
| Shifters | SRAM GX, 7spd |
| Handlebars | Burgtec RideWide DH Alloy Bar, 800mm, 30mm Rise |
| Tape/Grips | Burgtec Bartender Pro Grip Minnar or VP VPG-101A |
| Stem | Santa Cruz Direct Mount 35x45/50 |
| Brakes |
SRAM Code R Rotors: SRAM HS2 Rotor 220mm (front), 200mm (rear) |
| Pedals | Sold separately |
| Saddle | Fizik Alpaca Gravita X5 Saddle |
| Seat Post | RaceFace Chester |
* Subject to change without notice.
