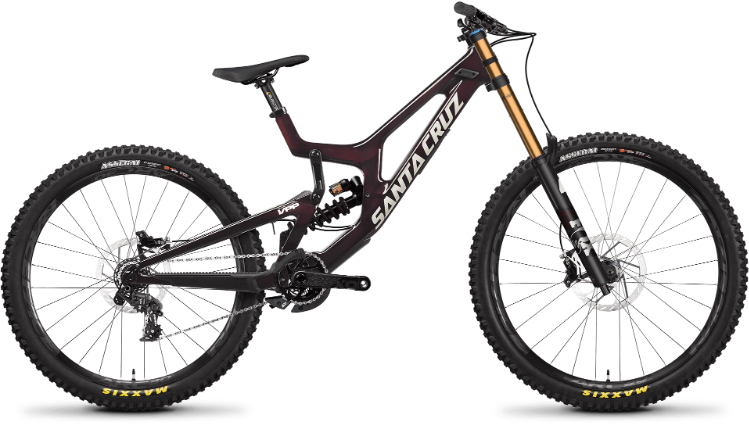

Santa Cruz V10 CC DH X01 MX
Details
Puzzling Ain't Easy
The V10 is designed to be exactly the right bike for anyone who steps up to the start line with eyes on a podium. The racer who chooses a V10 is the recipient of every bit of work and puzzling that's gone into the Syndicate's race bikes.
The continuous fine-tuning that the V10 has undergone with the Syndicate for World Cup season after season has guaranteed regular, high-level feedback. The result is perhaps the most refined suspension performance available outside of a World Cup pit. 215mm of VPP travel is exquisitely refined, and the ease of tuning and serviceability of the VPP system makes it a hit in the pits with mechanics and privateers.
Wheel size has been the latest puzzle to ponder. Greg Minnaar, being a tall rider looking for pure speed on the clock, focuses his choice on 29-inch wheels. Luca Shaw chose what feels fun, because, to him, if he's having fun he's going fast, so he's on a mixed setup. Bottom line: your V10 is optimized for who you are.
The most successful bike in downhill history shows no signs of slowing down.
| M | L | |
|---|---|---|
| A. Reach | 437mm | 462mm |
| B. Stack | 632mm | 637mm |
| C. Standover | 718mm | 719mm |
| E. Head Tube Angle | 63.7° | 63.7° |
| F. Head Tube Length | 100mm | 105mm |
| H. Seat Tube Length | 445mm | 455mm |
| I. Bottom Bracket Height | 356mm | 356mm |
| J. Bottom Bracket Drop | 16.4/-2mm | 16.4/-2mm |
| M. Wheelbase | 1251mm | 1278mm |
| N. Front to Center | 806mm | 833mm |
| O. Chainstay Length | 445-455 | 445-455 |
| M | L | |
|---|---|---|
| A. Reach | 435mm | 460mm |
| B. Stack | 631mm | 635mm |
| C. Standover | 713mm | 714mm |
| E. Head Tube Angle | 63.3° | 63.3° |
| F. Head Tube Length | 100mm | 105mm |
| H. Seat Tube Length | 445mm | 455mm |
| I. Bottom Bracket Height | 351mm | 351mm |
| J. Bottom Bracket Drop | 21.6/3.mm | 21.6/3.mm |
| M. Wheelbase | 1252mm | 1279mm |
| N. Front to Center | 806mm | 833mm |
| O. Chainstay Length | 446-456 | 446-456 |
| Frame Size | Rider Height |
|---|---|
| Medium | 5'5" - 5'9" |
| Large | 5'9" - 6'1" |
Specs
| Frame | Carbon CC |
|---|---|
| Fork | Fox 40 Factory, 203mm, 29" |
| Rear Shock | Fox DHX2 Factory Coil |
| Rims | RaceFace ARC HD 30 29" (F) RaceFace ARC HD 30 27.5” (R) |
| Hubs |
Front: i9 1/1, 20x110 Boost, 32h Rear: i9 1/1, 12x157, XD, 32h |
| Tires |
Front: Maxxis Assegai 29"x2.5", 3C, MaxxGRIP Rear: Maxxis Assegai 27.5"x2.5", 3C, MaxxGRIP |
| Bottom Bracket | SRAM DUB 83mm |
| Crankset | SRAM X01 DH, DUB 83, 165mm, 36t |
| Shifters | SRAM X01 DH |
| Rear Derailleur | SRAM X01 DH, 7spd |
| Cassette/Freewheel | SRAM X01 DH, 7spd |
| Chain | SRAM PC1170, 11spd |
| Brakes | SRAM Code RSC |
| Rotors | SRAM Centerline Rotor 203mm (F) / 200mm (R) |
| Handlebars | Santa Cruz 35 Carbon Bar, 800mm, 35mm Rise |
| Tape/Grips | Burgtec Bartender Pro Grip Minnar |
| Stem | Santa Cruz Direct Mount 35x45/50 |
| Headset | Cane Creek 40 ZS49/EC49 Headset |
| Seatpost | Burgtec Xpress Carbon |
| Saddle | Fizik Alpaca Gravita X5 Saddle |
| Pedals | Sold separately |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Oxblood / Large | 192219286808 | 58-23237-154-4-786-374401 | 210000037699 |
